Product Introduction

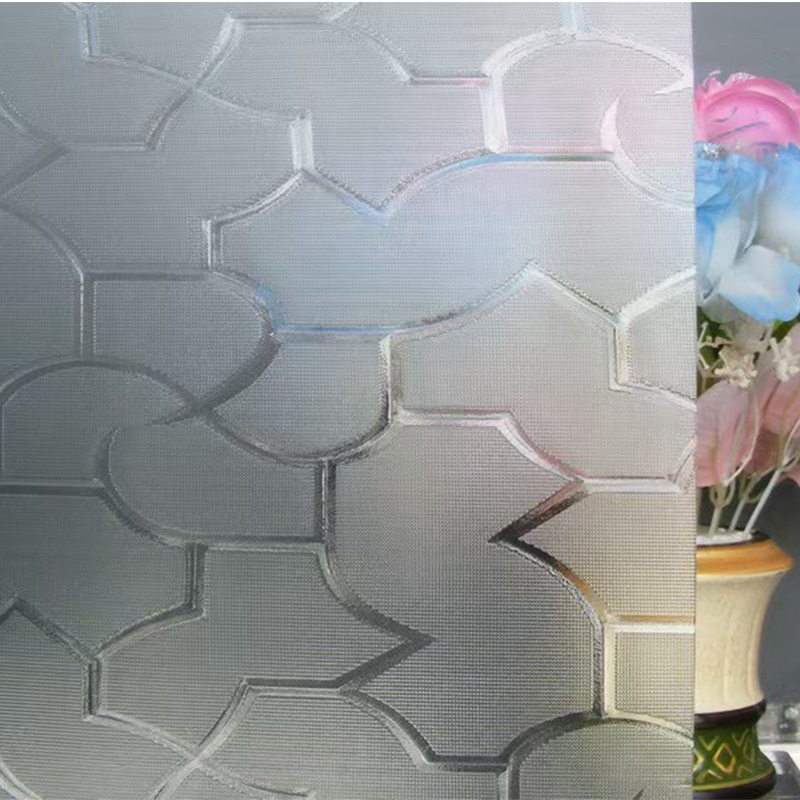

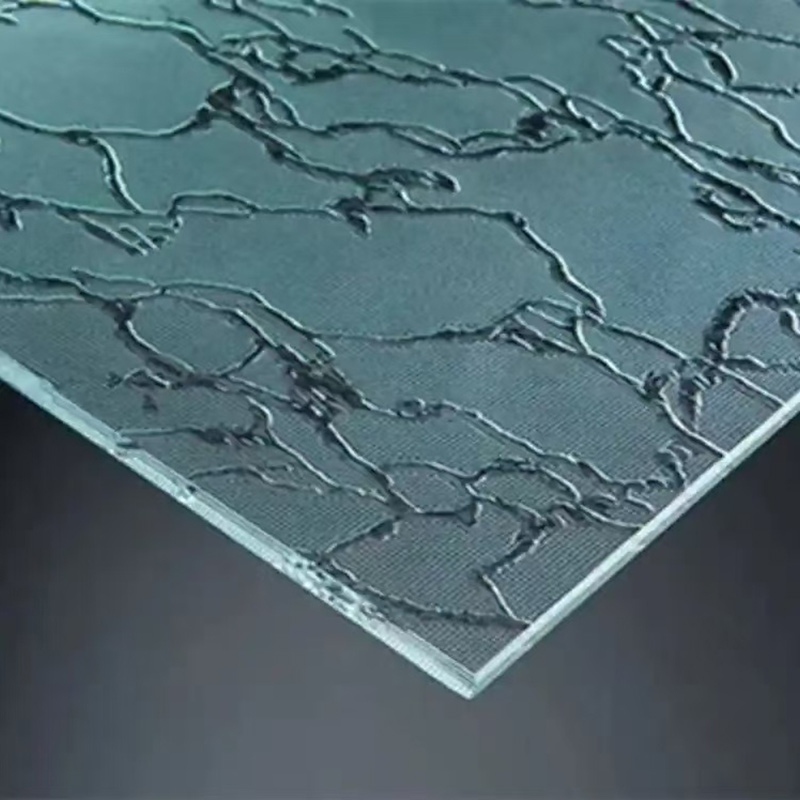

Embossed glass, also known as patterned glass or knurled glass, is a special glass widely used in the field of architecture. It is a flat glass made by rolling method. Before the glass hardens, a roller with patterns is used to press patterns on one or both sides of the glass, thus making embossed glass with patterns on one or both sides.
Production Process
1. Design: Draw the required pattern and texture according to the design requirements.
2. Make molds: Make corresponding molds according to the design patterns and textures. The mold materials can be gypsum, aluminum molds or silicon molds.
3. Prepare raw materials: Cut the glass to be processed into appropriate sizes as required and ensure the surface finish.
4. Embossing: Put the glass into the mold, heat it at high temperature (about 700℃) to soften it, and then use pressure to make the glass react with the mold to form the required pattern and texture on the glass surface.
5. Cooling: After the embossing is completed, cool the mold and glass together until the temperature drops to about room temperature.
6. Post-processing: Clean and polish the glass to make the pattern and texture clearer and brighter.
7. Quality inspection: Carry out strict quality inspection, including appearance inspection, dimension measurement, strength test, etc., to ensure that it meets relevant standards and requirements.
Product Specifications
| Thickness | 5mm, 6mm, 8mm, 10mm, 12mm, etc. |
| Original sheet specifications | 3300x2440mm, 3660x2440mm, 3660x2740mm, etc. |
| Color | white, blue, green, gray, brown and other colors. |
| Customized according to customer needs. | |
Application
Embossed glass is mainly used in indoor living rooms, dining rooms, study rooms, screen partitions, door and window glass, bathroom glass partitions, etc.
Technical features
It has the properties of light transmission and opacity, privacy protection, heat insulation, sound insulation, etc.
Our services
Pre-sales service: provide samples;
Welcome to visit the factory; timely reply; professional sales team. Production cycle service: professional customization; timely update of progress; strict quality inspection;
Installation guidance: provide customers with installation guidance services for glass products to ensure the correct installation and use of the products.
After-sales service: regular follow-up; provide installation guides; solve after-sales problems in a timely manner.
FAQ
Q: What certificates have you passed?
A: After identification by relevant professional institutions, the company has passed 3C certification, environmental protection system certification and other quality system certifications.
Q: How long is the production cycle?
A: After the order is confirmed, delivery within 7-15 days.
Q: What types of glass are there?
A: There are single-piece glass, laminated glass, hollow glass, fireproof glass, curtain wall glass, LOWE glass, etc. There are many varieties and they are customized according to your needs.
Q: What is the performance of the glass?
A: It has high safety performance, sound insulation and noise prevention, UV protection, heat insulation, energy saving and environmental protection, earthquake resistance and explosion resistance, etc.
Q: How do I place an order?
A: (1). After the quotation is confirmed, we will send the official invoice to the customer by email.
(2)The production and delivery time will be determined by the parties through negotiation according to the order quantity. We will send the product photos to customer before the crew.
