Product Introduction

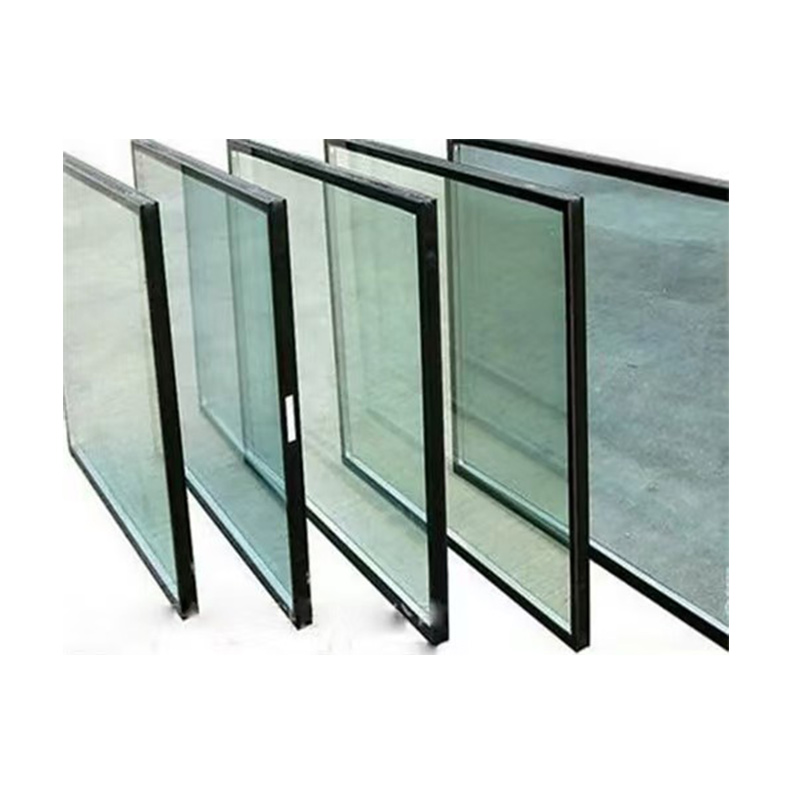

5+20A+5 insulating glass is a common glass product, which is widely used in the construction field, especially in architectural applications such as home doors and windows or curtain walls. It is composed of two parallel glass panels connected by aluminum strips or plastic strips to form a closed space. This structure can effectively reduce the transfer of sound and heat, and improve the sound insulation and heat insulation performance of glass.
Production Process
1. Material selection Select high-quality glass sheets and select the required thickness according to requirements.
2. Glass cutting Precise cutting to ensure cutting quality and accuracy.
3. Glass edge grinding Fine grinding, edge grinding of cut glass to eliminate sharp edges and fine cracks and improve the smoothness of the edges.
4. Washing and drying Wash the edged glass to remove dust, oil and impurities on the surface to ensure subsequent adhesion. Drying is required after washing to prevent moisture from affecting the subsequent processing.
5. Tempering The principle is to form a layer of compressive stress on the surface of the glass to prevent the glass from breaking, so as to improve the strength of the glass and better resist breaking. Even if it breaks, it is small particles, which greatly reduces the possibility of injury.
6. Aluminum spacer processing and filling desiccant According to the design requirements, use an aluminum strip bending machine to bend the aluminum spacer into a frame. Fill the aluminum spacer with molecular sieves. The function of the molecular sieve is to absorb the moisture in the hollow layer and keep the air dry.
7. Butyl glue and frame gluing Apply butyl glue evenly on the edge of the aluminum spacer to ensure the sealing of the hollow layer. Glue the aluminum spacer coated with butyl glue to the first piece of glass, and then glue the second piece of glass to the other side of the aluminum spacer to form a closed hollow layer.
8. Pressing and applying structural glue The well-mixed insulating glass is sent to the tablet press for pressing, and the glass and the aluminum spacer fit tightly. Apply structural glue on the frame of the insulating glass to enhance the sealing and stability.
9. Quality inspection: strict quality inspection, including appearance inspection, dimension measurement, strength test, etc., to ensure that it meets relevant standards and requirements.
Product Specifications
| Aluminum strip thickness | 20A |
| Single sheet thickness | 5mm |
| Finished product thickness | 5+20A+5 30mm |
| Original sheet specifications | 3300x2440mm, 3660x2440mm, 3660x2740mm, etc. |
| Customized according to customer needs. | |
Our services
Pre-sales service: provide samples;
Welcome to visit the factory; timely reply; professional sales team. Production cycle service: professional customization; timely update of progress; strict quality inspection;
Installation guidance: provide customers with installation guidance services for glass products to ensure the correct installation and use of the products.
After-sales service: regular follow-up; provide installation guide; timely solve after-sales problems.
FAQ
Q: Are you the manufacturer?
A: Yes, we are the source factory
Q: Can you provide customization?
A:Of course, we can provide customization.
Q: How soon can you give us the quotation?
A:Depending on the product and quantity you want, we will give you a quote as soon as possible.
Q: Can the architectural glass be customized according to the drawing?
A:Of course, we have professional engineers, according to your drawings to give you a quote, do customized products.
